TATA-LETAK KOMPONEN UTAMA ZX200

Penambang Heavy Equipment, HITACHI, Hydraulic Excavator, ZX 200

tata letak komponen zx 200

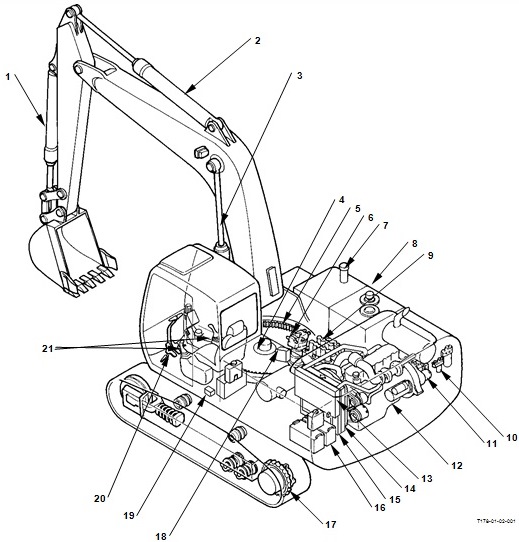

  1. Bucket Cylinder
  2. Arm Cylinder
  3. Boom Cylinder
  4. Center Joint
  5. Swing Bearing
  6. Swing Device
  7. Fuel Tank
  8. Hydraulic Oil Tank
  9. Control Valve
  10. Pilot Filter dan Pilot Relief Valve
  11. Pump Device
  12. Engine
  13. Intercooler
  14. Radiator
  15. Oil Cooler
  16. Battery
  17. Travel Device
  18. Signal Control Valve
  19. Pilot Shut-Off Valve
  20. Travel Pilot Valve
  21. Front Attachment/Swing Pilot Valve
