Skema dan Fungsi Parking Brake Solenoid Valve

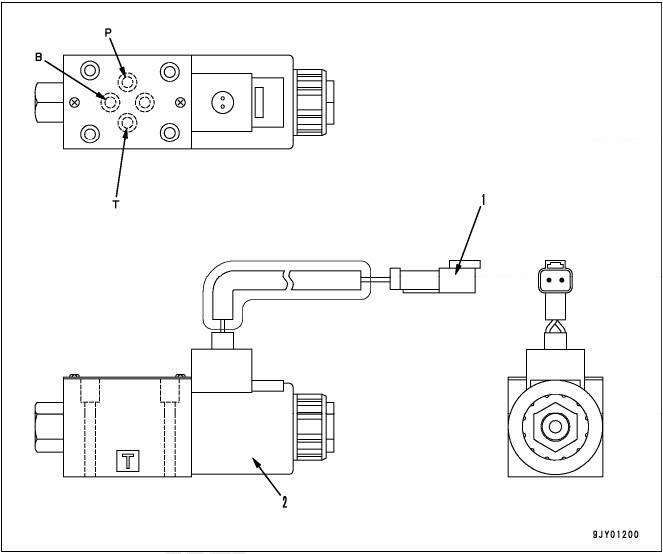

Pada gambar dapat kita lihat:

  1. Connector
  2. Solenoid.

B: To parking brake

P : From secondary brake valve

T: To brake system tank.

Fungsi Parking Brake Solenoid Valve
Parking brake solenoid di dalam circuit oil brake dipasang diantara secondary brake valve dan brake piston. Saat parking brake switch diposisikan PARKING solenoid valve tidak mendapat arus listrik sehingga tidak bekerja dan menutup parking brake release oil pressure. Selanjutnya, kekuatan spring brake akan mengaktitkan parking brake.
