Engine Performance Terminology

caterpillar engine

There are many factors that determine the performance of an engine. The operating conditions that an engine is exposed to and the specific application an engine is placed in can affect the performance of the engine. Many of the determining factors for performance, however, are determined by the manufacturer of the engine.

Some of the basic specifications that a manufacturer makes on an engine that affect performance of the engine are:

  • Bore
  • Stroke
  • Displacement
  • Compression Ratio

The performance of an engine is typically rated by comparing power output and/or efficiency of the engine. These evaluations can be measured in several different ways. The basis for these measurements and the manufacturer’s specifications must be known in order to better understand the effects that all of these factors and measurements have on engine performance.

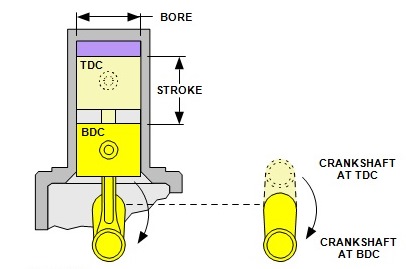

tdc bdc
Top Dead Center (tdc)

Top dead center (tdc) is a term used to describe the position of the piston when the piston is at its highest point in the cylinder. This occurs when the crankshaft and the connecting rod are fully extended and straight with one another. Many events in the operation of the engine are identified by crankshaft position, measured in degrees either before or after tdc.

Bottom Dead Center (bdc)

Bottom dead center (bdc) is a term used to describe the position of the piston when the piston is at its lowest point in the cylinder. This occurs when the crankshaft and the connecting rod are fully retracted and straight with one another.

Bore (B)

Bore is a term used to describe the diameter of a single cylinder in an engine. Bore is typically measured in millimeters or inches.

Stroke (L)

Stroke is a term used to describe the distance that a piston travels in the cylinder of the engine. The stroke is measured as the difference between the position of the piston at BDC to TDC. The amount of stroke is determined by the design of the crankshaft. The stroke is equal to exactly twice the throw of the crankshaft. Stroke is typically measured in millimeters or inches.

Engine Displacement

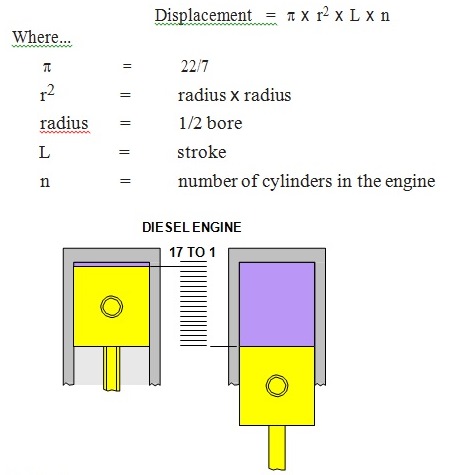

The bore, the stroke, and the number of cylinders all determine the displacement of an engine. The displacement of an engine is simply the amount of volume displaced by all cylinders in an engine during one complete rotation. The displacement of an engine can be calculated using the following formula:

displacement

Compression Ratio

The compression ratio of an engine is determined by the cylinder displacement and the combustion chamber volume. In order to calculate the compression ratio use the following formula:

CR = Total Cylinder Volume / Combustion Chamber Volume

Typical compression ratios of diesel engines range from 11:1 to 22:1. This is significantly higher than the compression ratio of a typical gasoline engine. Diesel engines utilize higher compression ratios to increase the pressure within the combustion chamber.

Higher pressures will cause an increase in the temperature of the air and fuel in the combustion chamber. This high temperature (approximately 1000°F) will cause the diesel fuel to ignite without the use of a spark plug.

Work

Work is defined as a force that is applied over a distance.

W = F x D



Power

Power is defined as the rate at which work is performed

P = F x D / t

or

P = W / t

Where t is the time that the work is performed in.

The standard measure of power in the metric system is the kilowatt (kW), and in the english system the standard measure of power is the horsepower (HP).

1 HP = 0.746 kW

1 kW = 1.340 HP

The term horsepower was originally derived by James Watt, a scottish inventor. Watt observed the ability of a horse in coal mine hoisting coal. He defined 1 HP to be equal to the ability of a horse to raise 33,000 lb of coal a distance of 1 ft in 1 minute.

There are several different types of power that are often discussed.

Indicated horsepower (IP) is the power that an engine is theoretically able to produce. This is found by multiplying the displacement of the engine by the mean effective pressure in the cylinder in pounds per square inch and dividing it by 33,000.

Brake engine horsepower (BP) is the power that is found by physically testing an engine on a dynamometer. A dynamometer is a device that is coupled to an engine for the purpose of measuring the torque and the horsepower output of the engine.

Friction power (FP) is the power that an engine requires in order to overcome the frictional losses of bearings, gears, and other moving parts of the engine. Friction power increases as the size and/or the speed of an engine increases.

BP = IP – FP

Torque

When the engine is running, the combustion that takes place causes the pistons to move downward in the cylinder. This downward piston motion pushes on the connecting rods and causes the crankshaft to be turned. The resulting twisting force produced by the crankshaft is called torque.

The torque and the horsepower that an engine produces are related to one another with the following equation:

HP = T x RPM / 5252

NOTE: This formula can not be used with metric units. Convert the metric units to english units before performing the calculation.

Where…

formula torque

The constant of 5252 is derived by dividing the 33,000 lb in Watt’s horsepower formula by the angular value of one rotation of the crankshaft in radians.

Torque is measured in foot-pounds (ft lb) in the english system and in Newton-meters (Nm) in the metric system.

1 ft lb = 1.3558 Nm

1 Nm = 0.7376 ft lb

Friction

A certain amount of force is required in order to slide the surfaces of two objects against one another. The resistance to this motion is called friction. As the load is increased, friction is increased. For example it requires more effort to slide a heavy object than it does to slide a light object. The condition of the two surfaces in contact also makes a difference. This is why the lubrication system in an engine is so important. The oil film between the moving parts of an engine keep the friction between the two surfaces very low. This not only gives the engine a long service life, but also creates less drag on the engine, reducing the amount of frictional power. This allows the engine to produce more brake power.

Inertia

Sir Isaac Newton’s first law of motion states that an object in motion tends to stay in motion and an object at rest will tend to stay at rest, until acted upon by an outside force. This phenomenon is due to objects possessing inertia. The amount of inertia an object has is directly proportional to the amount of mass that the object has. For example a car has more inertia than a bicycle. This is why it is harder to move or stop a car than a bicycle.



Efficiency

The efficiency that a particular engine has is expressed as a percentage of the actual power to the theoretical power of an engine. The actual power produced by an engine is always less than the theoretical power. There are several ways to describe the efficiency of an engine.

Volumetric efficiency is defined as how capable an engine is of filling the cylinder with air on the intake stroke compared to the cylinder being completely filled with air at atmospheric pressure. Because air must be sucked into the cylinder with the downward motion of the piston, the engine is never able to fill the cylinder 100%.

Brake power is the amount of usable power that an engine actually produces. Indicated power is the amount of theoretical power that an engine should be able to produce. Mechanical efficiency is the ratio of brake power to indicated power.

BP / IP = Mechanical Efficiency

Thermal efficiency is the degree to which an engine is able to successfully convert the energy in the fuel into heat energy to cause the pistons to turn the crankshaft.

Fuel efficiency is defined in several different ways. The most common of which is kilometers per liter (km/L) or miles per gallon (mpg), which would be used to describe the fuel efficiency of an engine in an over the road application such as in a truck.

Fuel efficiency for marine or industrial applications may be expressed in liters per hour (Lph) or gallons per hour (gph) at rated speed.

Fuel efficiency may also be expressed in brake specific fuel consumption (bsfc). Bsfc is defined as the amount of fuel used per unit of power and time. The bsfc of an engine is expressed in either g / (kW hr) or lb / (hp hr).

Atmospheric Conditions

In order to produce the desired levels of power, diesel engines require a large volume of air. Therefore the atmospheric pressure, the ambient air temperature, and the relative humidity of the air play a large role in the performance characteristics of the engine.

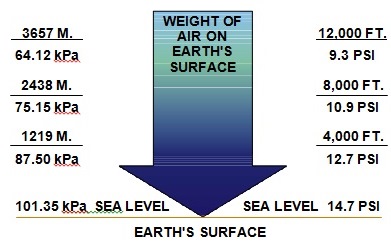

It is the atmospheric air pressure that is present that forces the air into the engine. Atmospheric pressure is the pressure that is exerted on the earth’s surface due to the weight of the atmosphere (the air surrounding the earth). Atmospheric pressure is greatest at sea level because there is more air above the air at sea level than there is above the air at the top of a mountain. Refer to figure…

atmospheric pressure

As an example, due to increased pressure at sea level the air is more dense than the air on top of a mountain. The dense air allows for more air molecules to flow into the cylinder. This allows for the fuel to be more completely burned in a diesel engine, which produces more power. This is why engines perform better in lower altitudes, the air is more dense.

Ambient air temperature also plays a role in how much air can flow into an engine. The lower the temperature of the air, the more dense the charge of air is that enters the cylinders. The greater the density of the air, the more power that can be produced efficiently in the engine.

Humidity is also an important factor in diesel engine combustion. Humidity is a relative measure of the amount of moisture that is suspended in the air. The suspended moisture has a cooling effect on the air as it enters the engine. Therefore, the greater the humidity of the air, the colder the air, the denser the air, the more power that can be produced efficiently in the engine.
